Casa /Prodotti/Macchina di fabbricazione netta dell'ombra/The Needle Bed: The Foundation of Precision in Warp Knitting Machines

The Needle Bed: The Foundation of Precision in Warp Knitting Machines

1 set
MOQ
negotiable
prezzo
The Needle Bed: The Foundation of Precision in Warp Knitting Machines
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Tipo di prodotto: Macchina per la produzione di reti ombreggianti
Colore: Personalizzato
Larghezza di lavoro: 135" - 260"
Velocità: 200-450 giri al minuto
Misurare: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Garanzia: 1 anno ((Supporto tecnico permanente)
Evidenziare:

warp knitting machine needle bed

,

precision needle bed for knitting

,

shade net machine foundation part
Informazioni di base
Luogo di origine: La Cina, Jiangsu
Marca: Chenye
Certificazione: ISO ,CE, TUV
Numero di modello: SRCA
Termini di pagamento e spedizione
Imballaggi particolari: 40HQ/Set
Tempi di consegna: 60 giorni dopo il pagamento del deposito
Termini di pagamento: L/C,T/T,Western Union
Capacità di alimentazione: 25 set al mese
Descrizione di prodotto

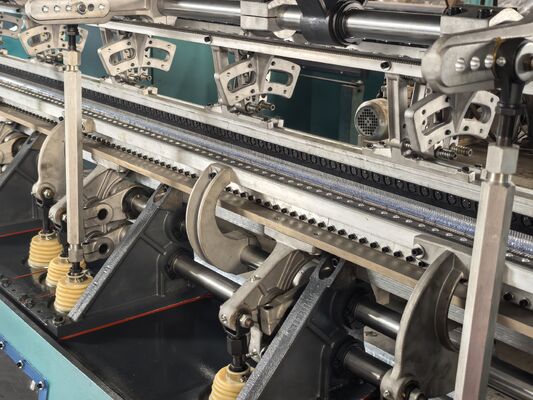

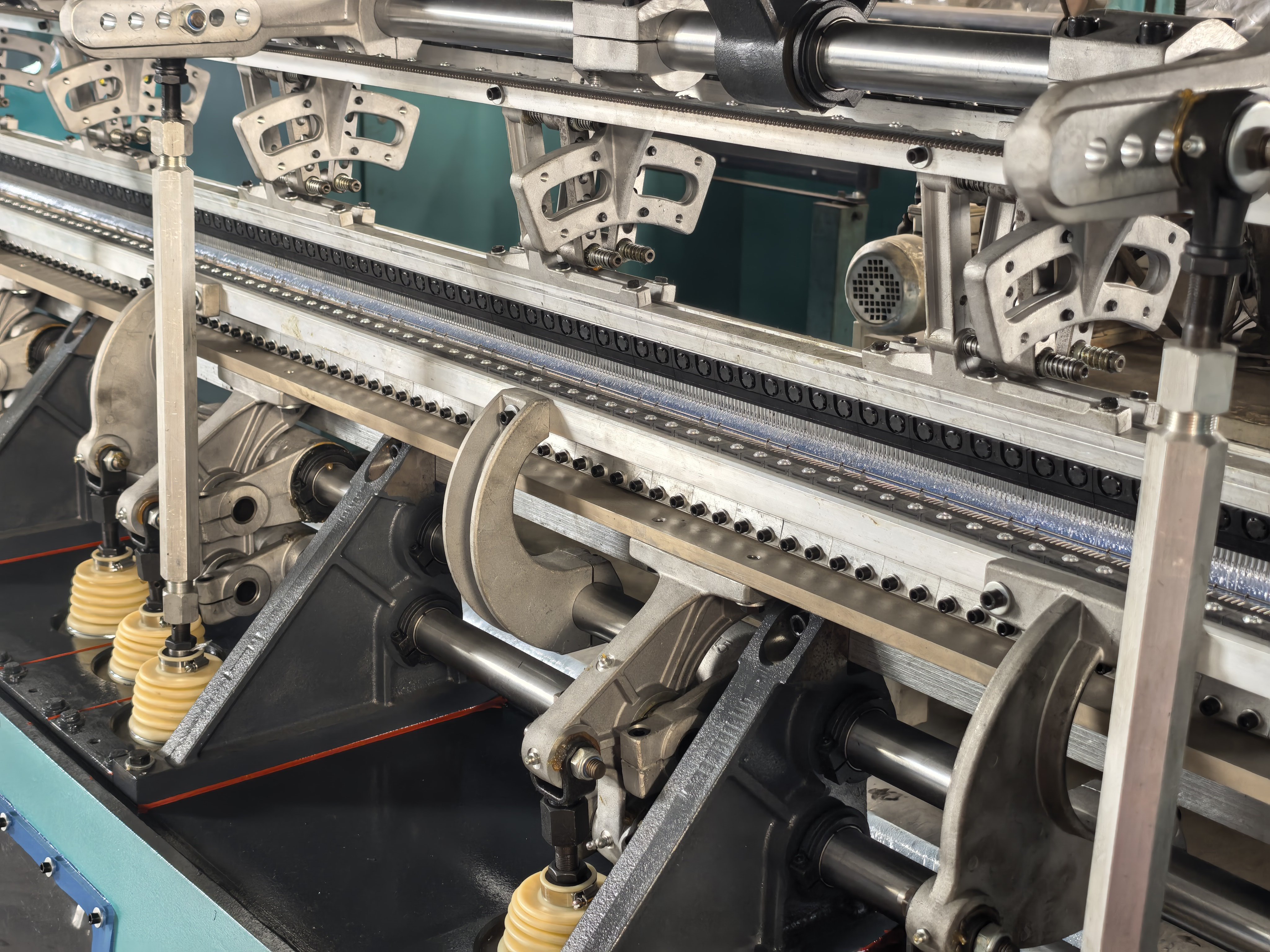

The Needle Bed: The Foundation of Precision in Warp Knitting Machines
In the warp knitting industry, machine precision is the key to producing high-quality fabrics and net products. Among all machine components, the needle bed serves as one of the most important foundations of stable and efficient knitting operations. Its accuracy directly affects machine performance, fabric quality, and production efficiency.
The needle bed is responsible for holding and positioning thousands of knitting needles during operation. Every needle must remain accurately aligned while the machine runs at high speed. Any deviation in needle positioning can lead to fabric defects such as dropped stitches, uneven mesh structures, or reduced product quality.
To ensure long-term durability, Chenye Warp Knitting Machinery manufactures needle beds using high-quality alloy steel materials. These materials offer excellent strength and wear resistance, allowing the machine to operate continuously under demanding production conditions.
Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450
Applications & Purpose
Shade net machines produce specialized netting material used in agricultural settings, nurseries, gardens, and outdoor areas to create controlled environments with optimal growing conditions.
Primary Benefits:
  • Sunlight Protection: Reduces sunlight intensity to prevent overheating and create favorable microclimates
  • Temperature Control: Maintains lower temperatures by filtering sunlight for plant, animal, and human comfort
  • Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust in sensitive areas
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Secure machine packaging Shipping preparation
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
