Casa /Prodotti/Macchina della rete di sicurezza/Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production

Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production

1
MOQ
$43,500-45,000
prezzo
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Energia: 7.2 W
Stile a maglia: Ordito
Metodo di maglieria: Raddoppiare
Computelizzato: SÌ
Dimensioni: 8200*1700*2400
Misura: E2/E6/E7/E8/E9/E12, E18, E22, E24, E26, E28, E30
Larghezza a maglia: 135-260
Larghezza di lavoro: 90.720
Controllare: Plc
Peso: 7000 kg
Numero di barre: 6
Motore principale: 3 kW
Motore inching: 0,75 kW
Velocità: 200-700 giri / min
Componenti principali: Motore, plc, pompa, cambio
Evidenziare:

1 Year Warranty Double Needle Bed Warp Knitting Machine

,

7000 KG Weight Raschel Knitting Machine

,

8200*1700*2400 Dimension Safety Net Machine
Informazioni di base
Luogo di origine: Jiangsu, Cina
Marca: Chenye
Termini di pagamento e spedizione
Descrizione di prodotto

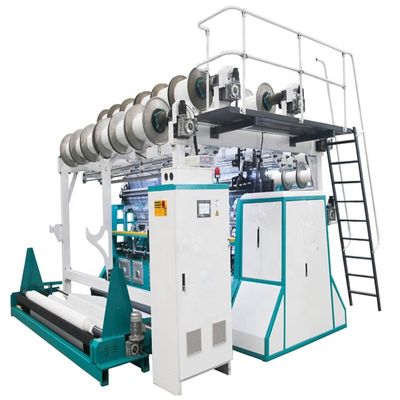

Double Needle Bed Warp Knitting Tricot Machine for Safety Net
Product Description
This high-performance warp knitting machine is designed for producing specialized fabrics including safety nets, backing fabrics, short pie plush fabrics, and spacer fabrics.
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 0
Key Features
  • Equipped with eccentric connecting mechanism for precise operation
  • Knitting elements use four-bar mechanism with short stroke latch needle
  • Electronic batching device (EBA) for consistent fabric quality
  • Electronically controlled fabric take-up system
  • Available in multiple gauges: E18, E22, E24, E26, E28, E30
  • 6-bar configuration for versatile fabric production
  • Separately-standing take-up mechanism
Technical Specifications
Machine Type Machine Size (mm) Weight (kg) Main Motor (KW) Inching Motor (KW) Speed (rpm)
DROEL96-90 4000x5600x3600 8000 3 0.75 200-700
DROEL96-110 4800x5500x3600 10000 3 0.75 200-700
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 1 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 2 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 3 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 4
Net Samples
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 5
Company Profile
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 6
Chenye is a professional Raschel Knitting Machine manufacturer with extensive experience in the field. Known for product quality and service, Chenye is a leading company in China with products exported to over 20 countries. We continuously innovate to develop new products that meet diverse customer requirements. Long-term business relationships are fundamental to our philosophy, and we take pride in consistently delivering quality products and services.
Exhibition
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 7
Service
  • On-site commissioning and engineer training available
  • Training programs at our factory for maintenance and production techniques
  • 24/7 online support team
  • Local service engineers available in some countries
  • Complimentary maintenance during company visits to your country
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 8
Product Packaging
Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 9 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 10 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 11 Double Needle Bed Warp Knitting Machine with 1 Year Warranty 7000 KG Weight and 8200*1700*2400 Dimension for Safety Net Production 12
Packaging Details: 40HQ container per machine set, extra parts packaged in wooden boxes, machines secured with steel straps.
Frequently Asked Questions
What is the delivery time?
Approximately 60 days.
Can we send samples for customizing the machine?
Yes, our engineers will analyze your samples and recommend machine customization accordingly.
What is the warranty period?
One year warranty with complimentary spare parts included in the shipment.
What is the production capacity of this machine?
Production varies by net design and weight, with standard nets producing approximately 1200 meters per 24 hours.
